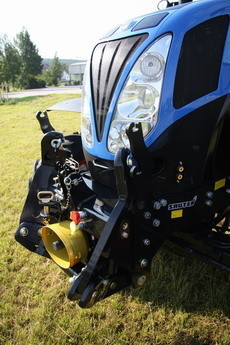

The following NEW HOLLAND tractor models can be equipped with SAUTER front linkages and front PTOs. Our table gives a comprehensive survey of technical data and standard delivery:please contact Symon for which models of Case tractor are compatible with New Holland

T4.55 - T4.65 - T4.75
T4020-4050
TD5.85 - TD5.95 - TD5.105 - TD5.115
TD5010-5050
T5.95 - T5.105 - T5.115 Support of front axle adapted
T5.95 - T5.105 - T5.115 w/o preparation
T5030-5070
T6.120 - T6.140 - T6.150 - T6.160 - T6.155 - T6.165 -
   T6.175

T7.170 - T7.185 - T7.200 - T7.210
T7.220 - T7.235 - T7.250 - T7.260 - T7.270

TD5.85 - TD5.95 - TD5.105 - TD5.115

Front linkage category 2
Lifting power at catch hook kN (t) 25 (2,5)
Lifting power at implement centre of gravity
800 mm from catch hooks kN (t)
17 (1,7)
Double-acting cylinders
Reversing valve
Reversing switch o
Catch hooks Walterscheid cat. • 2
Top link cat. / thread 2 / M30
Top link support
Front PTO shaft speed/rpm / gear ratio • 1000 / 1,93
o 1000Eco / 1,63
Max. PTO power kW (HP) • 147 (200)
o 100 (136)
Max. admissible power kW (HP) • 110 (150)
o 88 (120)
PTO shaft profile DIN 9611 - 1 3/8"-6
Sense of rotation rightward in driving direction

T5.95 - T5.105 - T5.115
Support of front axle adapted by New Holland to receive the front linkage

Front linkage category 2
Lifting power at catch hook kN (t) 25 (2,5)
Lifting power at implement centre of gravity
800 mm from catch hooks kN (t)
17 (1,7)
Double-acting cylinders
Reversing valve
Catch hooks Walterscheid cat. • 2
Top link cat. / thread 2 / M30
Top link support
Front PTO shaft speed/rpm / gear ratio 1000 / 1,93
PTO shaft profile DIN 9611 - 1 3/8"-6
Sense of rotation rightward in driving direction


T6.120 - T6.140 - T6.150 - T6.160 - T6.155 - T6.165 - T6.175

Front linkage category 2
Lifting power at catch hook kN (t) 38 (3,8)
Lifting power at implement centre of gravity
800 mm from catch hooks kN (t)
25 (2,5)
Double-acting cylinders
Reversing valve
Reversing switch o
Catch hooks Walterscheid cat. • 3L
Top link cat. / thread 2 / M30
Top link support
Front PTO shaft speed/rpm / gear ratio • 1000 / 2,1
o 1000Eco / 1,63
Max. PTO power kW (HP) • 147 (200)
o 100 (136)
Max. admissible power kW (HP) • 110 (150)
o 88 (120)
PTO shaft profile DIN 9611 - 1 3/8"-6
Sense of rotation rightward in driving direction

T7.170 - T7.185 - T7.200 - T7.210

Front linkage category 2
Lifting power at catch hook kN (t) 38 (3,8)
Lifting power at implement centre of gravity
800 mm from catch hooks kN (t)
25 (2,5)
Double-acting cylinders
Reversing valve
Reversing switch o
Catch hooks Walterscheid cat. • 3L
Top link cat. / thread 2 / M30
Top link support
Side rails up to the clutch housing
Front PTO shaft speed/rpm / gear ratio • 1000 / 1,93
o 1000Eco / 1,63
Max. PTO power kW (HP) • 147 (200)
o 100 (136)
Max. admissible power kW (HP) • 110 (150)
o 88 (120)
PTO shaft profile DIN 9611 - 1 3/8"-6
Sense of rotation rightward in driving direction
